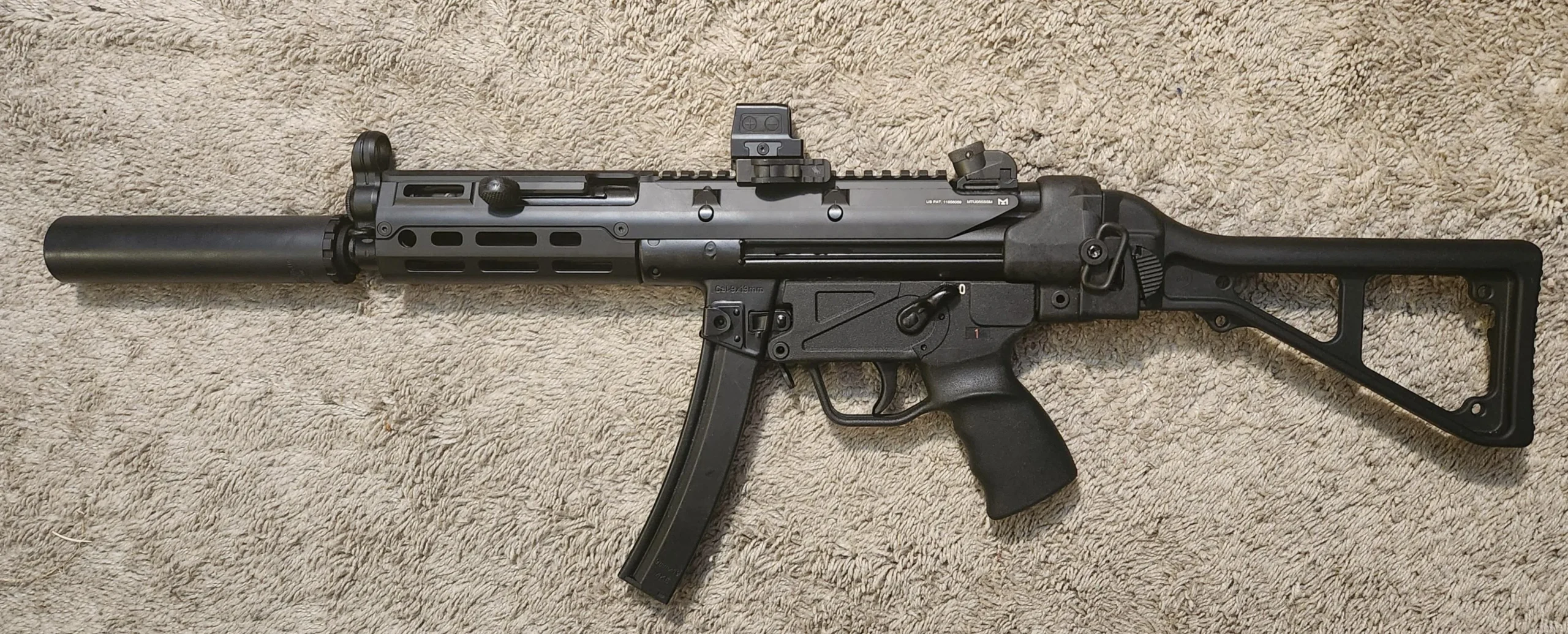

The Heckler & Koch MP5 submachine gun is one of history’s most famous submachine guns. The MP5’s German precision engineering has led to it being regarded as a firearm of great respect in both military and law-enforcement units across the globe. However, even weapons of this calibre could benefit from tactical improvements. An enhanced charging grip is one of the most useful. A more robust, ergonomic component is better for safety and the user experience.
In this article, you’ll learn how to install a new charging handle on your HKMP5. We’ll cover three major considerations: bolt-carrier fits, recoil-spring tests, and the safety slap test. Each step will ensure your firearm functions smoothly even after an upgrade.
Why Upgrade Your Charging Handle
The standard Heckler & Koch MP5 charge handle is good but has limitations. Many aftermarkets upgraded handles feature larger, ergonomic grips for easier manipulation, especially when under stress or wearing gloves. Some features include extended levers as well as textured surfaces or reinforced materials.
A better charging hand can help you to reload faster, with more control and greater reliability. You must understand how the charging handle works in conjunction with the bolt carrier and spring systems before installing this component.
Step 1: Assess Bolt Carrier Fit
The bolt carrier is the most crucial component to check when verifying compatibility. The HK MP5’s roller-delayed blowback system has been finely tuned, and the charge handle interfaces directly with it.
Remove the old handguard and charging handle assembly. Examine how the new handle and bolt carrier contact each other. The notch or lug should seat cleanly on the upgraded charger handle without excessive play. If the lug or notch is too loose, it can cause slop to occur during charging.
This document provides detailed instructions on enhanced HK MP5 charging-handle upgrade steps. This guide includes diagrams of the installation process and torque suggestions.
If the bolt carrier is coated or if aftermarket companies have modified it, ensure that the coating does not alter tolerances, which could prevent the new handles from locking. Apply a thin coating of lubrication if necessary. Avoid forcing it, as this may damage your charging system and bolt.
Step 2: Recoil Rod and Guide Rod Inspection
It is essential to inspect the spring after the enhanced charger handle has been installed and appears to fit the bolt carrier well. This is essential because the spring supplies the force that resets the bolt each time after a shot and returns the charging handle to a neutral position.
Slide the assembly of the recoiling spring out from the buttstock. Look for wear or kinks in the spring, especially at its ends, where the bolt carrier and the guide rod are located. A damaged recoiling spring can interfere with the MP5’s ability to slap the bolt and may cause cycling issues.
Replace the recoil spring if in doubt. You can replace the springs for a relatively low price and avoid troubleshooting later.
Step 3: Slap-Testing for Safety
The last safety check is critical: the slap test. This procedure makes sure that your charging lever is securely locked in the notch.
After the firearm has been unloaded and its bolt is locked to the rear, firmly tap the charging handle until it locks. Simulate jostling with light bumps or a tap on the receiver. You can also gently shake the firearm. The handle needs to be locked firmly without releasing or releasing the bolt.
This slap test is important, especially after installing the enhanced charging handle. The locking characteristics of longer or heavier designs may differ. If the charging handle comes loose too quickly, it may require minor adjustments to the fitting or tensioning to ensure proper operation.
Conclusion
The upgrade of your HKMP5 can be a great way to improve the ergonomics, responsiveness, or modern utility. However, it must be installed correctly. For your upgrade to be safe and effective, you must pay attention to how the bolt carrier fits, the condition of the recoil spring, and conduct a thorough “slap test”.
This modification is no different from any other; it requires precision, patience, and a solid understanding of operating principles. A charging handle upgrade, when done properly, not only modernises the MP5 but also makes it ready for tactical environments and high-performance shooting. The right components and an attentive approach can make your MP5 more reliable and easier to use for many years.
